How to do it…

1. Once started, Magnet Acquire looks for connected devices and displays their list in the window.

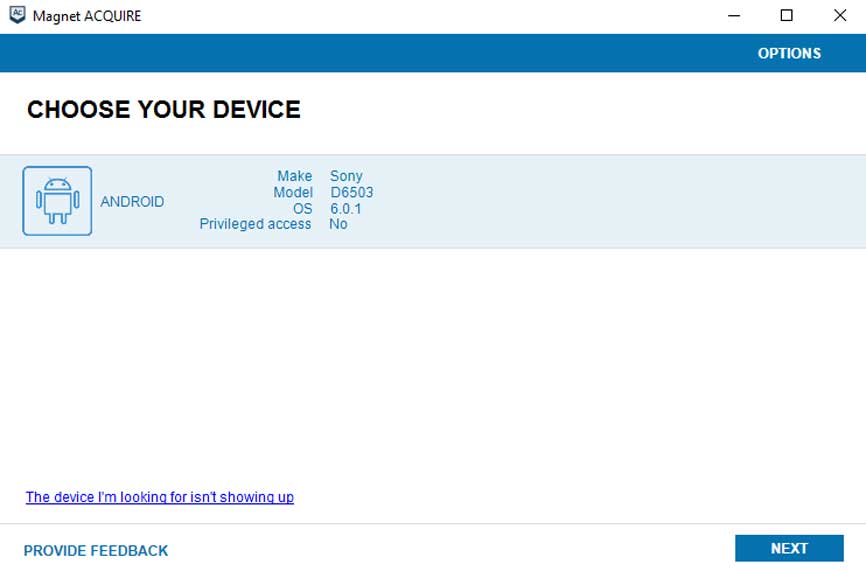

 A list of devices displayed in the Magnet Acquire

1. Click on the NEXT button. The next window will prompt you to select the type of extraction. Select Full if the connected Android device is rooted. Otherwise, select Quick.

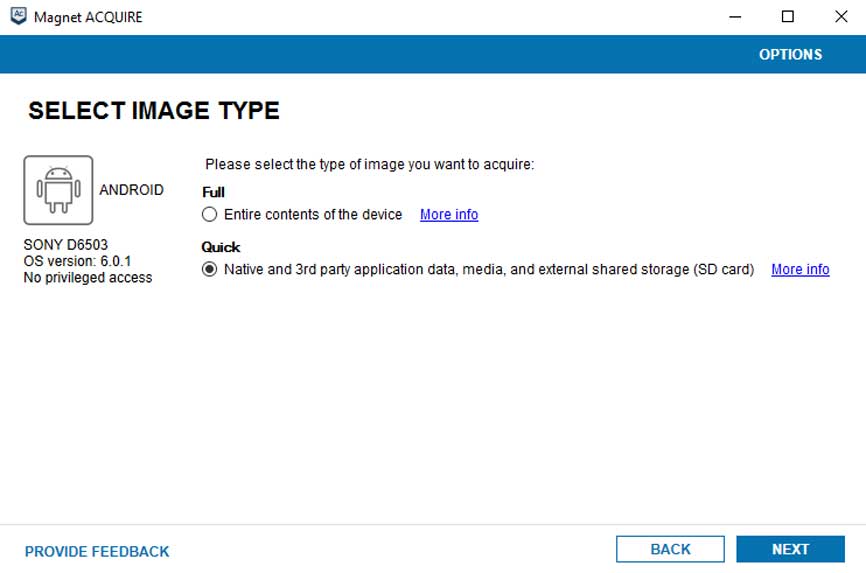

 Select the type of extraction

1. Click on the NEXT button. If necessary, fill in the Evidence folder name, Folder destination, Image name, Examiner, and Evidence number fields.

The create evidence folder window

1. Click on the ACQUIRE button. The process of data extraction from the device will start.

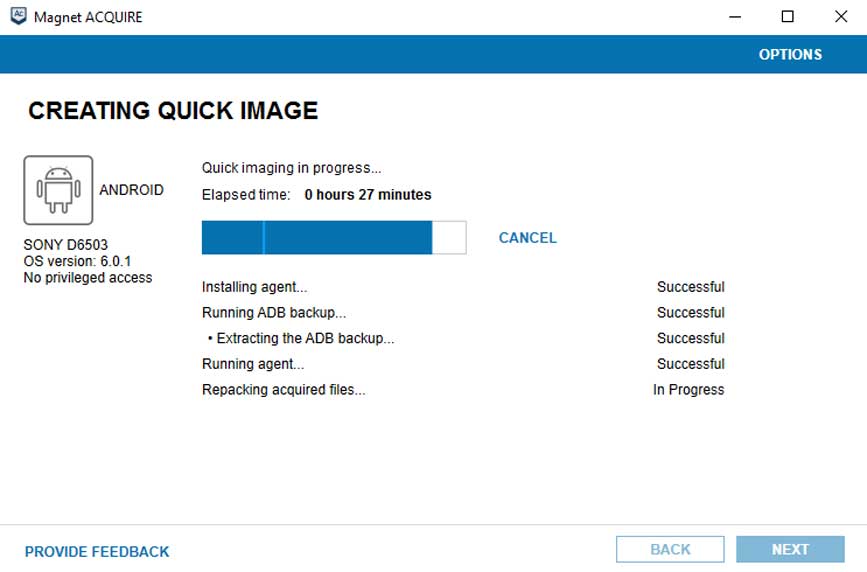

The process of data extraction.

1. When the data is extracted from the device, click on the EXIT button to close the program. If you want to go to the folder with the extracted data, click on OPEN FOLDER.

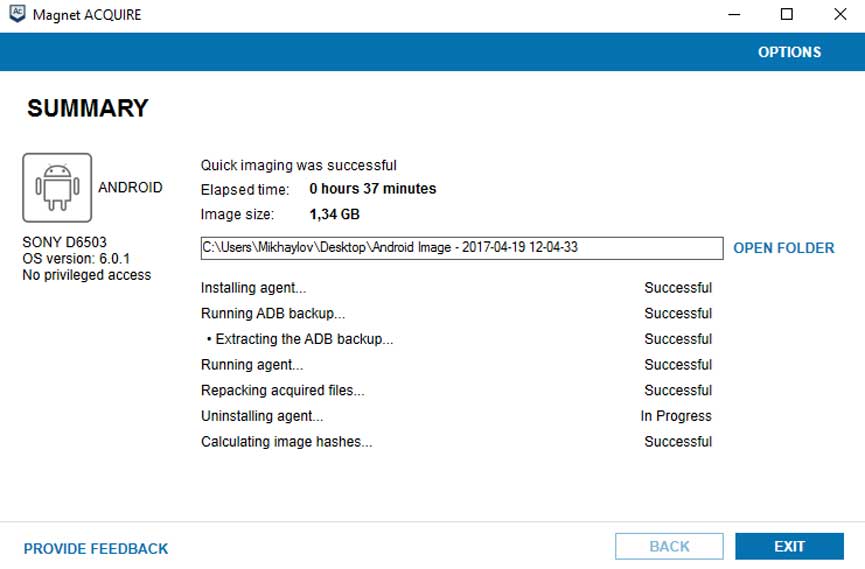

 The final window of the program
