Sample implementation of the Abstract Factory design pattern

I am going to create a Bank and Account interface and some concrete classes implementing these interfaces. Here, I also create an abstract factory class, AbstractFactory. I have some factory classes, BankFactory and AccountFactory; these classes extend the AbstractFactory class. I will also create a FactoryProducer class to create the factories.

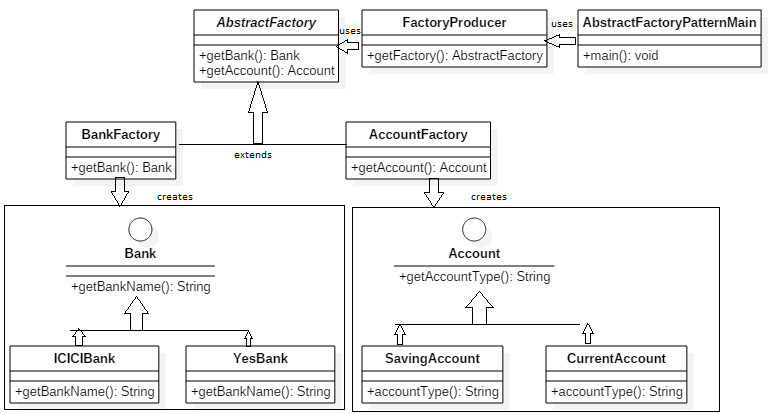

Let's see this design pattern in the following image:

Create a demo class, AbstractFactoryPatternMain; it uses FactoryProducer to get an AbstractFactory object. Here, I pass information such as ICICI, YES to AbstractFactory to get an object of Bank, and I also pass information such as SAVING, CURRENT to AbstractFactory to get an Account type.

Here is the code for Bank.java, which is an interface:

    package com.packt.patterninspring.chapter2.model;
    public interface Bank {
      void bankName();
    }

Now let's create ICICIBank.java, which implements the Bank interface:

    package com.packt.patterninspring.chapter2.model;
    public class ICICIBank implements Bank {
      @Override
      public void bankName() {
        System.out.println("ICICI Bank Ltd.");
      }
    }

Let's create another YesBank.java, an implementing Bank interface:

    package com.packt.patterninspring.chapter2.model;
    public class YesBank implements Bank{
      @Override
      public void bankName() {
         System.out.println("Yes Bank Pvt. Ltd.");
      }
   }

In this example, I am using the same interface and implementing classes of Account as I used in the Factory pattern example in this book.

AbstractFactory.java is an abstract class that is used to get factories for Bank and Account objects:

    package com.packt.patterninspring.chapter2.abstractfactory.pattern;
    import com.packt.patterninspring.chapter2.model.Account;
    import com.packt.patterninspring.chapter2.model.Bank;
    public abstract class AbstractFactory {
      abstract Bank getBank(String bankName);
      abstract Account getAccount(String accountType);
    }

BankFactory.java is a factory class extending AbstractFactory to generate an object of the concrete class based on the given information:

    package com.packt.patterninspring.chapter2.abstractfactory.pattern;
    import com.packt.patterninspring.chapter2.model.Account;
    import com.packt.patterninspring.chapter2.model.Bank;
    import com.packt.patterninspring.chapter2.model.CurrentAccount;
    import com.packt.patterninspring.chapter2.model.SavingAccount;
    public class AccountFactory extends AbstractFactory
    {
        final String CURRENT_ACCOUNT = "CURRENT";
    final String SAVING_ACCOUNT = "SAVING";
    @Override
    Bank getBank(String bankName)
    {
        return null;
    }
//use getAccount method to get object of type Account
//It is factory method for object of type Account
    @Override
    public Account getAccount(String accountType){
        if(CURRENT_ACCOUNT.equals(accountType))
        {
            return new CurrentAccount();
        }
        else if(SAVING_ACCOUNT.equals(accountType))
        {
            return new SavingAccount();
        }
        return null;
    }
}

AccountFactory.java is a factory class that extends AbstractFactory.java to generate an object of the concrete class based on the given information:

     package com.packt.patterninspring.chapter2.abstractfactory.pattern;
     import com.packt.patterninspring.chapter2.model.Account;
     import com.packt.patterninspring.chapter2.model.Bank;
     import com.packt.patterninspring.chapter2.model.CurrentAccount;
     import com.packt.patterninspring.chapter2.model.SavingAccount;
     public class AccountFactory extends AbstractFactory {
       final String CURRENT_ACCOUNT = "CURRENT";
       final String SAVING_ACCOUNT  = "SAVING";
       @Override
       Bank getBank(String bankName) {
          return null;
      }
      //use getAccount method to get object of type Account
      //It is factory method for object of type Account
      @Override
      public Account getAccount(String accountType){
        if(CURRENT_ACCOUNT.equals(accountType)) {
               return new CurrentAccount();
        }
        else if(SAVING_ACCOUNT.equals(accountType)){
               return new SavingAccount();
        }
        return null;
      }
    }

FactoryProducer.java is a class that creates a Factory generator class to get factories by passing a piece of information, such as Bank or Account:

    package com.packt.patterninspring.chapter2.abstractfactory.pattern;
    public class FactoryProducer {
      final static String BANK    = "BANK";
      final static String ACCOUNT = "ACCOUNT";
      public static AbstractFactory getFactory(String factory){
         if(BANK.equalsIgnoreCase(factory)){
               return new BankFactory();
         }
         else if(ACCOUNT.equalsIgnoreCase(factory)){
               return new AccountFactory();
         }
         return null;
       }
    }

FactoryPatterMain.java is a demo class for the Abstract Factory design pattern. FactoryProducer is a class to get AbstractFactory in order to get the factories of concrete classes by passing a piece of information, such as the type:

    package com.packt.patterninspring.chapter2.factory.pattern;
    import com.packt.patterninspring.chapter2.model.Account;
    public class FactoryPatterMain {
      public static void main(String[] args) {
         AccountFactory accountFactory = new AccountFactory();
         //get an object of SavingAccount and call its accountType()
         method.
         Account savingAccount = accountFactory.getAccount("SAVING");
         //call accountType method of SavingAccount
         savingAccount.accountType();
         //get an object of CurrentAccount and call its accountType()
         method.
         Account currentAccount = accountFactory.getAccount("CURRENT");
         //call accountType method of CurrentAccount
         currentAccount.accountType();
      }
    }

You can test this file and see the output on the console:

Now that we've seen the abstract Factory design pattern, let's turn to a different variant of it-the singleton design pattern.
