How to do it…

Let's see how to build a Naive Bayes classifier:

1. We will use naive_bayes.py, provided to you as a reference. Let's import some libraries:

import numpy as np
import matplotlib.pyplot as plt
from sklearn.naive_bayes import GaussianNB

1. You were provided with a data_multivar.txt file. This contains data that we will use here. This contains comma-separated numerical data in each line. Let's load the data from this file:

input_file = 'data_multivar.txt'
X = []
y = []
with open(input_file, 'r') as f:
    for line in f.readlines():
        data = [float(x) for x in line.split(',')]
        X.append(data[:-1])
        y.append(data[-1])
X = np.array(X)
y = np.array(y)

We have now loaded the input data into X and the labels into y. There are four labels: 0, 1, 2, and 3.

1. Let's build the Naive Bayes classifier:

classifier_gaussiannb = GaussianNB()
classifier_gaussiannb.fit(X, y)
y_pred = classifier_gaussiannb.predict(X)

The gauusiannb function specifies the Gaussian Naive Bayes model.

1. Let's compute the accuracy measure of the classifier:

accuracy = 100.0 * (y == y_pred).sum() / X.shape[0]
print("Accuracy of the classifier =", round(accuracy, 2), "%")

The following accuracy is returned:

Accuracy of the classifier = 99.5 %

1. Let's plot the data and the boundaries. We will use the procedure followed in the previous recipe, Building a logistic regression classifier:

x_min, x_max = min(X[:, 0]) - 1.0, max(X[:, 0]) + 1.0
y_min, y_max = min(X[:, 1]) - 1.0, max(X[:, 1]) + 1.0

# denotes the step size that will be used in the mesh grid
step_size = 0.01

# define the mesh grid
x_values, y_values = np.meshgrid(np.arange(x_min, x_max, step_size), np.arange(y_min, y_max, step_size))

# compute the classifier output
mesh_output = classifier_gaussiannb.predict(np.c_[x_values.ravel(), y_values.ravel()])

# reshape the array
mesh_output = mesh_output.reshape(x_values.shape)

# Plot the output using a colored plot
plt.figure()

# choose a color scheme
plt.pcolormesh(x_values, y_values, mesh_output, cmap=plt.cm.gray)

# Overlay the training points on the plot
plt.scatter(X[:, 0], X[:, 1], c=y, s=80, edgecolors='black', linewidth=1, cmap=plt.cm.Paired)

# specify the boundaries of the figure
plt.xlim(x_values.min(), x_values.max())
plt.ylim(y_values.min(), y_values.max())

# specify the ticks on the X and Y axes
plt.xticks((np.arange(int(min(X[:, 0])-1), int(max(X[:, 0])+1), 1.0)))
plt.yticks((np.arange(int(min(X[:, 1])-1), int(max(X[:, 1])+1), 1.0)))

plt.show()

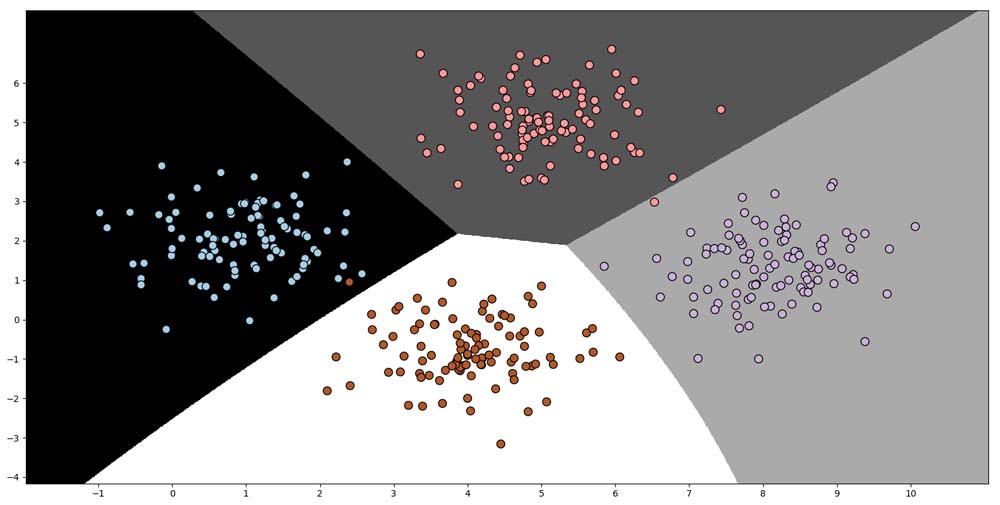

You should see the following:

There is no restriction on the boundaries to be linear here. In the preceding recipe, Building a logistic regression classifier, we used up all the data for training. A good practice in machine learning is to have non-overlapping data for training and testing. Ideally, we need some unused data for testing so that we can get an accurate estimate of how the model performs on unknown data. There is a provision in scikit-learn that handles this very well, as shown in the next recipe.
