How to do it…

Let's see how to build a logistic regression classifier:

1. Let's see how to do this in Python. We will use the logistic_regression.py file, provided to you as a reference. Assuming that you imported the necessary packages, let's create some sample data, along with training labels:

import numpy as np
from sklearn import linear_model
import matplotlib.pyplot as plt
X = np.array([[4, 7], [3.5, 8], [3.1, 6.2], [0.5, 1], [1, 2], [1.2, 1.9], [6, 2], [5.7, 1.5], [5.4, 2.2]])
y = np.array([0, 0, 0, 1, 1, 1, 2, 2, 2])

Here, we assume that we have three classes (0, 1, and 2).

1. Let's initialize the logistic regression classifier:

classifier = linear_model.LogisticRegression(solver='lbfgs', C=100)

There are a number of input parameters that can be specified for the preceding function, but a couple of important ones are solver and C. The solver parameter specifies the type of solver that the algorithm will use to solve the system of equations. The C parameter controls the regularization strength. A lower value indicates higher regularization strength.

1. Let's train the classifier:

classifier.fit(X, y)

1. Let's draw datapoints and boundaries. To do this, first, we need to define ranges to plot the diagram, as follows:

x_min, x_max = min(X[:, 0]) - 1.0, max(X[:, 0]) + 1.0
y_min, y_max = min(X[:, 1]) - 1.0, max(X[:, 1]) + 1.0

The preceding values indicate the range of values that we want to use in our figure. The values usually range from the minimum value to the maximum value present in our data. We add some buffers, such as 1.0, to the preceding lines, for clarity.

1. In order to plot the boundaries, we need to evaluate the function across a grid of points and plot it. Let's go ahead and define the grid:

# denotes the step size that will be used in the mesh grid
step_size = 0.01

# define the mesh grid
x_values, y_values = np.meshgrid(np.arange(x_min, x_max, step_size), np.arange(y_min, y_max, step_size))

The x_values and y_values variables contain the grid of points where the function will be evaluated.

1. Let's compute the output of the classifier for all these points:

# compute the classifier output
mesh_output = classifier.predict(np.c_[x_values.ravel(), y_values.ravel()])

# reshape the array
mesh_output = mesh_output.reshape(x_values.shape)

1. Let's plot the boundaries using colored regions:

# Plot the output using a colored plot
plt.figure()

# choose a color scheme you can find all the options
# here: http://matplotlib.org/examples/color/colormaps_reference.html
plt.pcolormesh(x_values, y_values, mesh_output, cmap=plt.cm.gray)

This is basically a 3D plotter that takes the 2D points and the associated values to draw different regions using a color scheme.

1. Let's overlay the training points on the plot:

# Overlay the training points on the plot
plt.scatter(X[:, 0], X[:, 1], c=y, s=80, edgecolors='black', linewidth=1, cmap=plt.cm.Paired)

# specify the boundaries of the figure
plt.xlim(x_values.min(), x_values.max())
plt.ylim(y_values.min(), y_values.max())

# specify the ticks on the X and Y axes
plt.xticks((np.arange(int(min(X[:, 0])-1), int(max(X[:, 0])+1), 1.0)))
plt.yticks((np.arange(int(min(X[:, 1])-1), int(max(X[:, 1])+1), 1.0)))

plt.show()

Here, plt.scatter plots the points on the 2D graph. X[:, 0] specifies that we should take all the values along the 0 axis (the x axis in our case), and X[:, 1] specifies axis 1 (the y axis). The c=y parameter indicates the color sequence. We use the target labels to map to colors using cmap. Basically, we want different colors that are based on the target labels. Hence, we use y as the mapping. The limits of the display figure are set using plt.xlim and plt.ylim. In order to mark the axes with values, we need to use plt.xticks and plt.yticks. These functions mark the axes with values so that it's easier for us to see where the points are located. In the preceding code, we want the ticks to lie between the minimum and maximum values with a buffer of one unit. Also, we want these ticks to be integers. So, we use the int() function to round off the values.

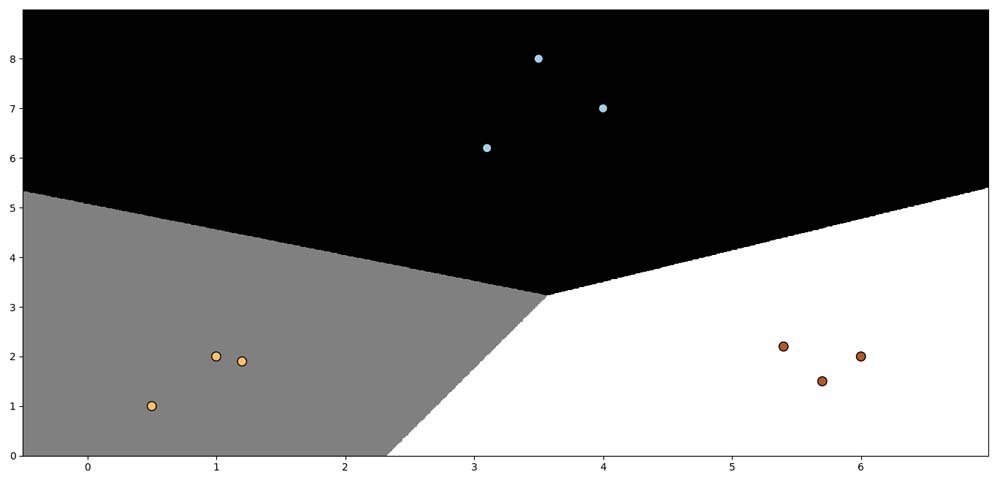

1. If you run this code, you should see the following output:

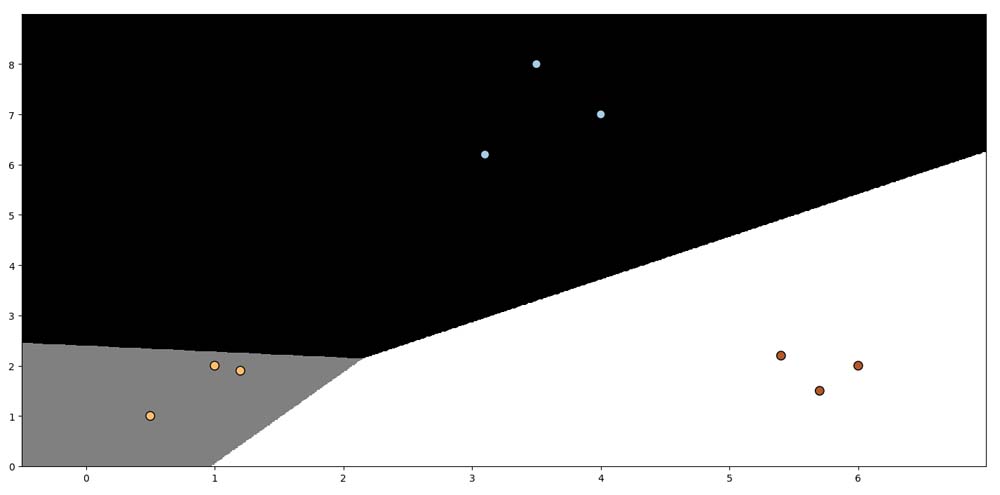

1. Let's see how the C parameter affects our model. The C parameter indicates the penalty for misclassification. If we set it to 1.0, we will get the following:

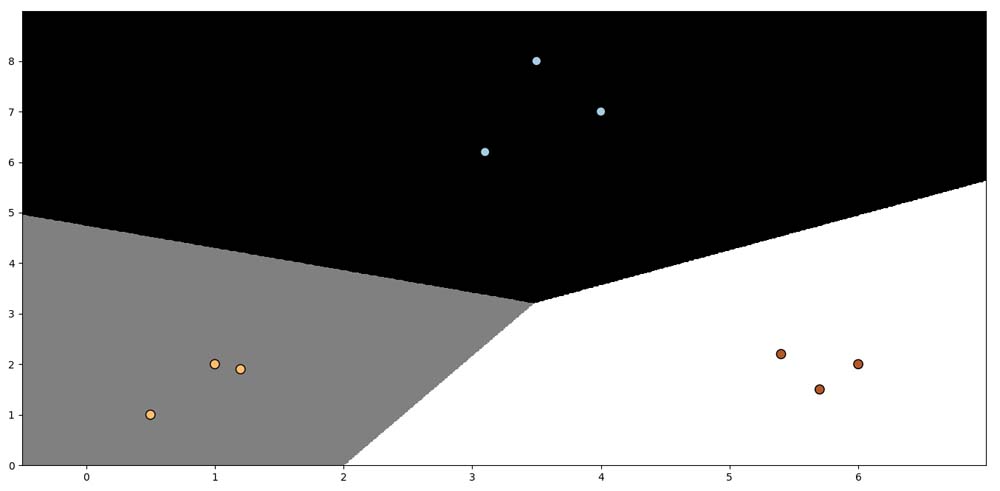

1. If we set C to 10000, we get the following:

As we increase C, there is a higher penalty for misclassification. Hence, the boundaries become more optimized.
